FIBC/Jumbo Bag Making Machines

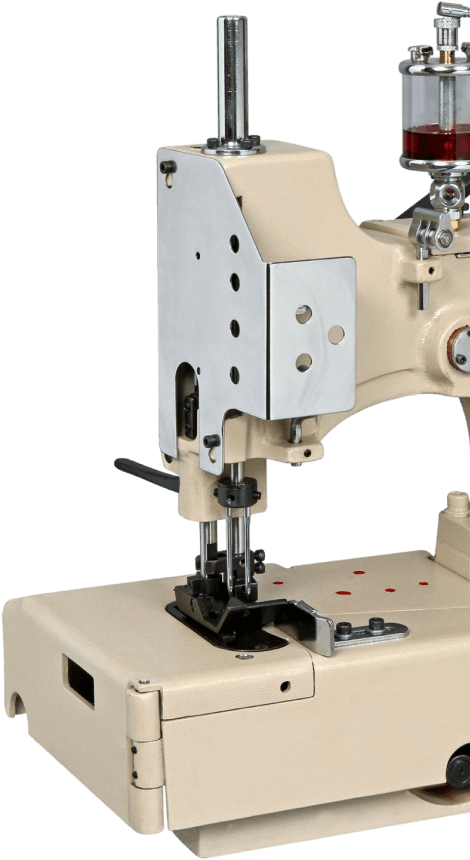

AS 606 DDR Technical Detail
- Double needle
- Four thread
- Plain feed
- Double-locked
- Chain stitch
- Produces two parallel seams
Application
- Double-needle sewing for manufacturing OMEGA Bags (150-200 GSM)
Stitching Sample
Industries and Applications
Packaging & Bags
- Omega bags only
Technical Parameters
| Model | AS 606 DDR | AS 606 UDDR | AS 7002 UDDR-P |
| Max Speed (R.P.M.) Approx | 1600 RPM | 1600 RPM | 1600 RPM |
| Needle type | UY9848GS, Nm 300/29 or DRX2 #28 | UY9848GS, Nm 300/29 | UY9848GS, Nm 300/29 |
| Number of needles | 2 | 2 | 2 |
| Stitching yarn type | PP multifilament, fabricated | PP multifilament, fabricated | PP multifilament, fabricated |
| Number of yarns | 4 | 4 | 4 |
| Yarn denier range | 2500 – 4500 | 2500 – 5000 | 2500 – 5000 |
| Needle distance | 7.2 mm | 7.2 mm | 7.2 mm |
| Stitch type | (401.401) SSa-2, double row chain | (401.401) SSa-2, double row chain | (401.401) SSa-2, double row chain |
| Overseam width | – | – | – |
| Stitch length range (per 100 mm) | 7-13 (*adjustable) | 7-13 (*adjustable) | 6-13 (*adjustable) |
| Feeding system | Bottom single feed dog | Feed dog on both upper and lower sides | Feed dog on both upper and lower sides |
| Pressure system | Mechanical spring | Mechanical spring | Pneumatic |
| Sewing capacity | Up to 12 mm thick | Up to 15 mm thick | Up to 20 mm thick |
| Lubrication | Manual oiling | Manual oiling | Manual oiling |
| Electro-pneumatic hot thread cutter | Optional | Optional | Optional |
| Needle cooling | Optional | Optional | Optional |
| Motor | 1 HP, single- or three-phase, 2850 RPM | 1 HP, single- or three-phase, 2850 RPM | 1.5 HP, single- or three-phase, 2850 RPM |
